- Brand Name::Eunicell
- Certification::CE/MSDS/UN38.3/MSDS
- Model Number::9060100
- Place of Origin::Guangdong, China
- Size::9.6mm*60mm*100mm
- Color::White
- Battery type::Li-polymer Battery
- Warranty:3months-1year
- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics
- Application:Electric Power Systems
- Application:Wireless Earphone
- Place of Origin:CN;GUA
- Battery Size:9.6mm*60mm*100mm
- Brand Name:Eunicell
- Certification:CE/ROHS/REACH/SGS/MSDS
- Model Number:9060100

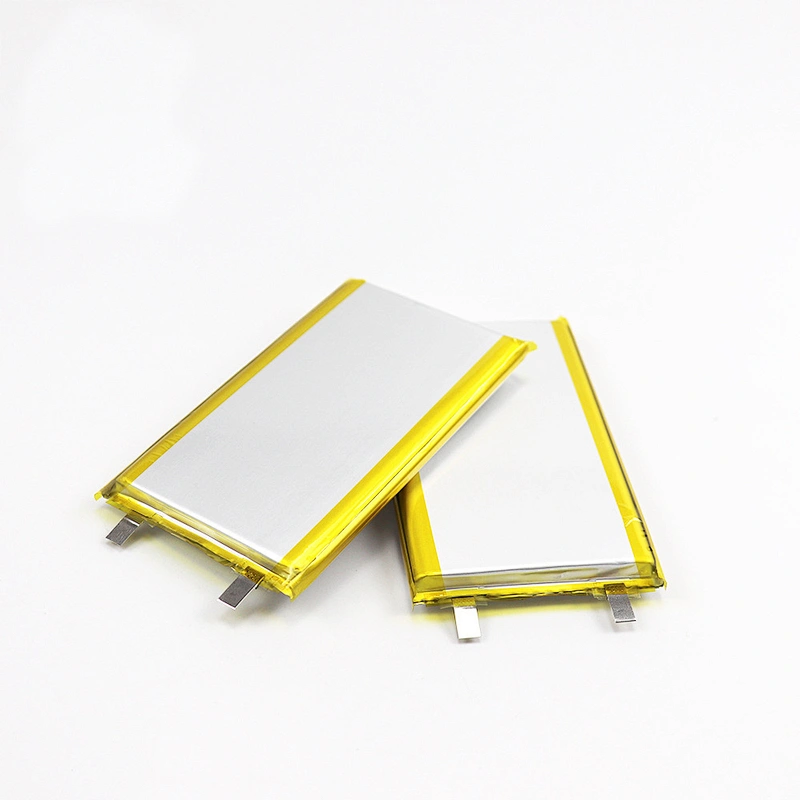

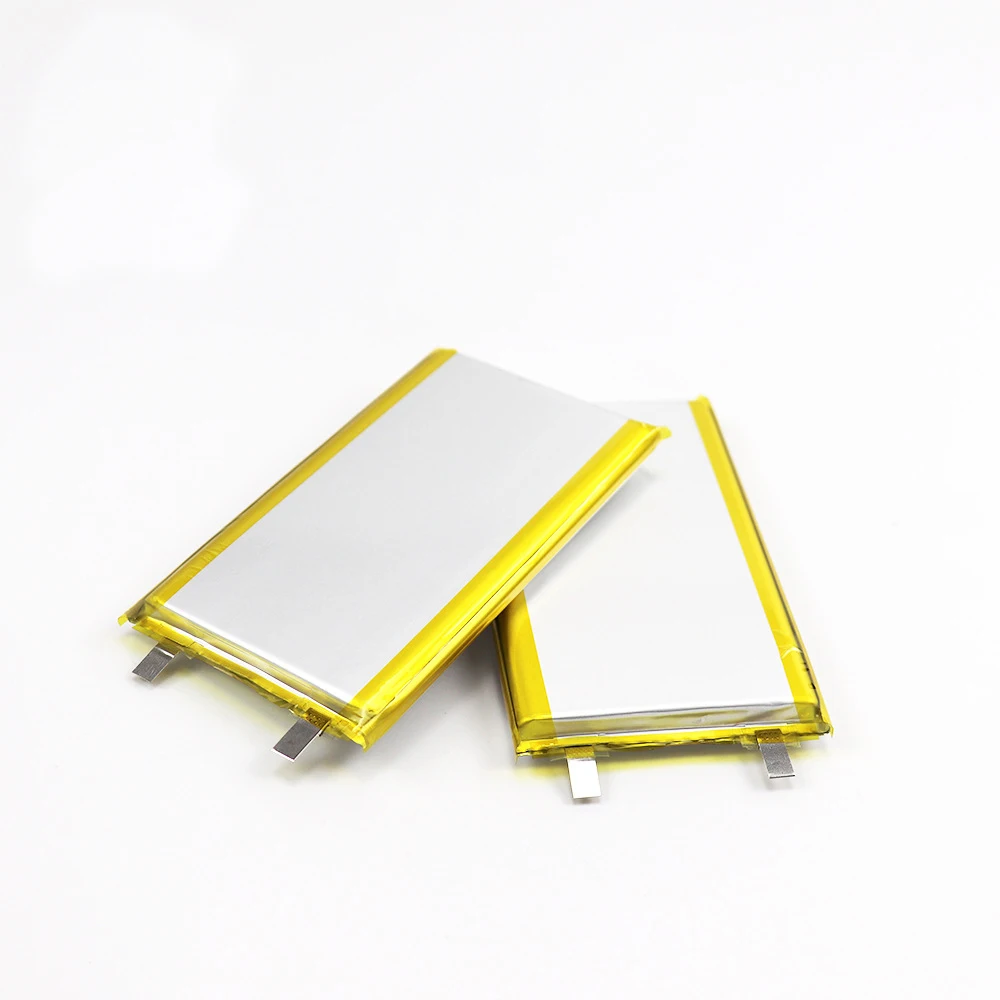

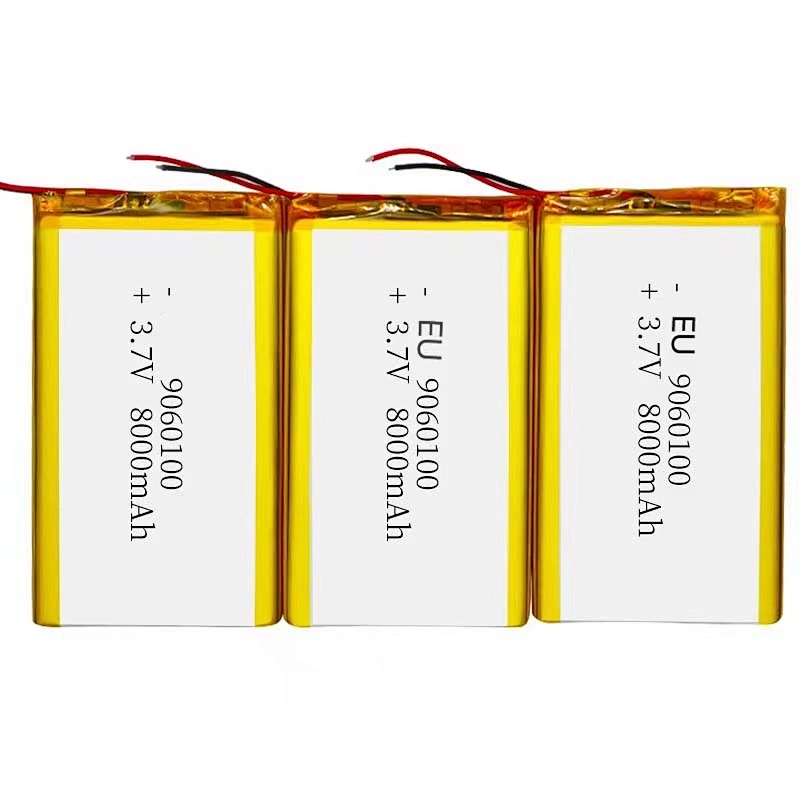

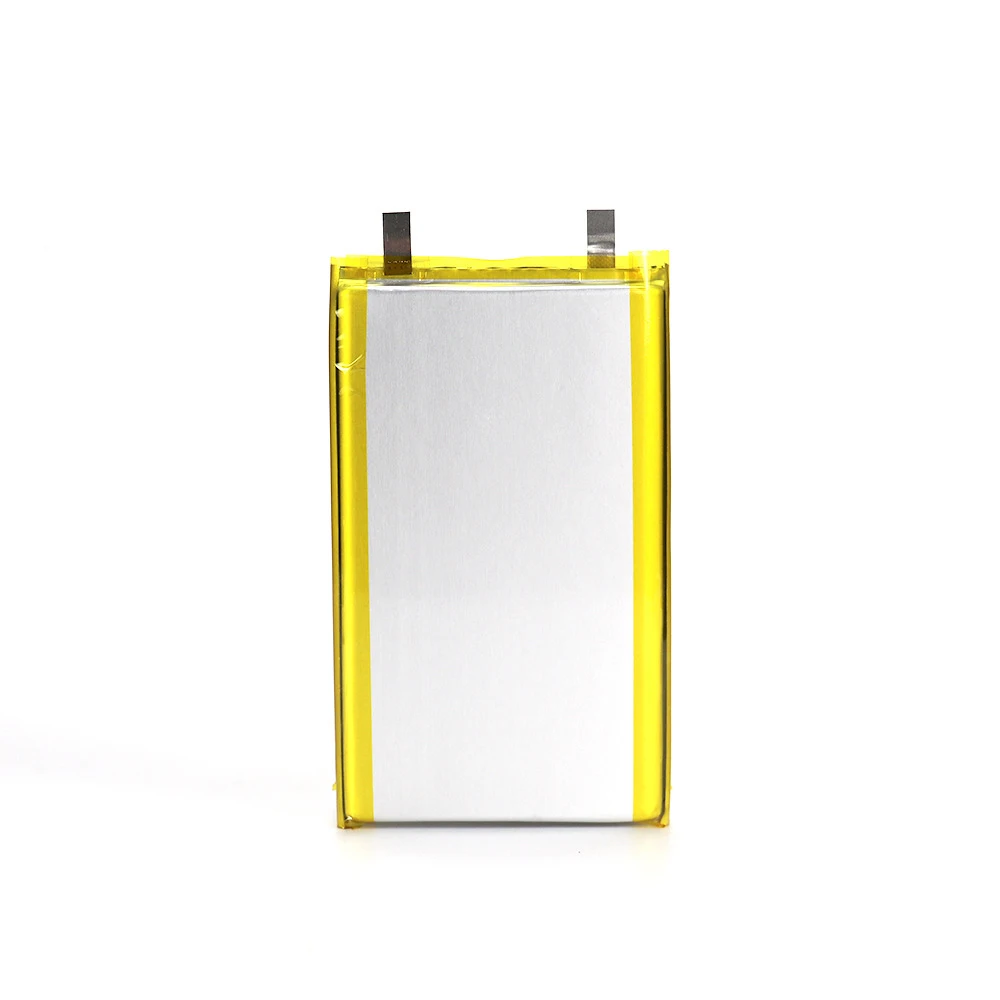

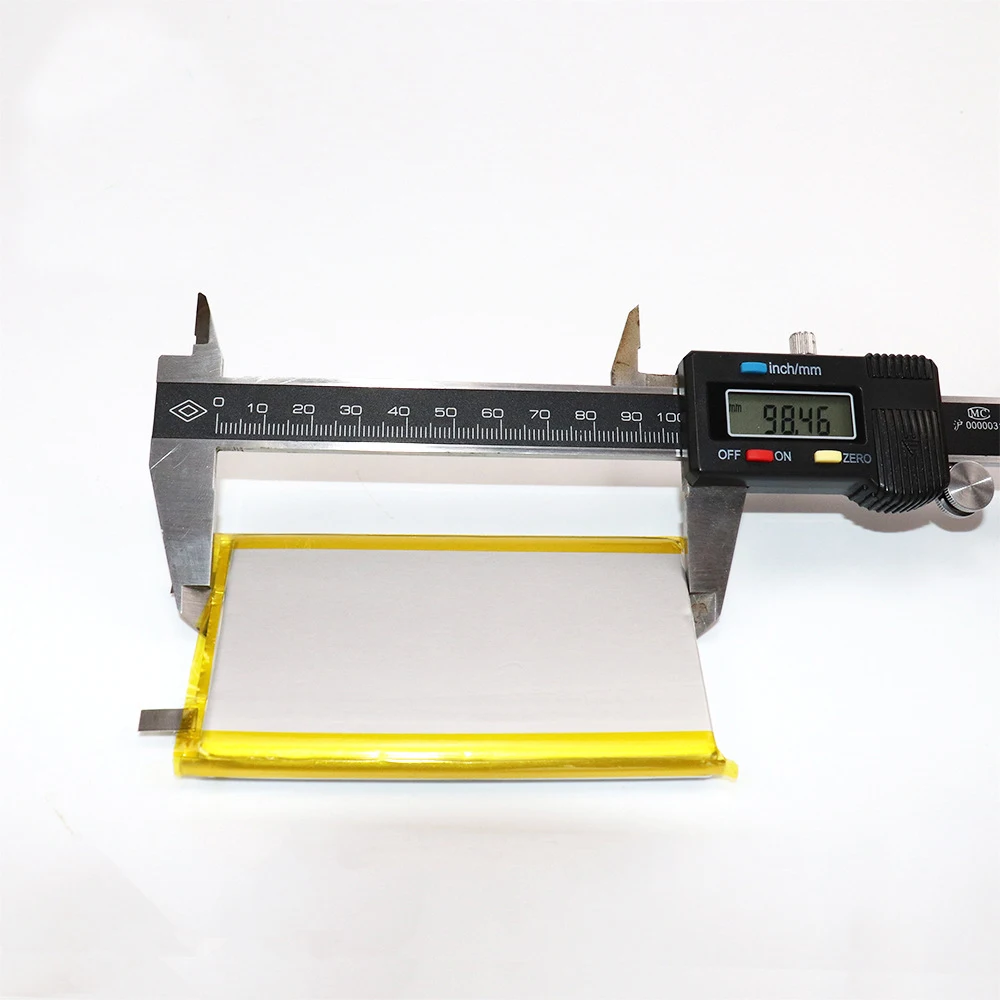

9060100 rechargeable 3.7v lithium polymer battery 9060100 8000mah lipo batteries 8ah for electric tools
Electrical Characteristics
Item | Remark |
Mode | 9060100 |
Nominal Voltage: | 3.7v |
Nominal Capacity | 8000mah |

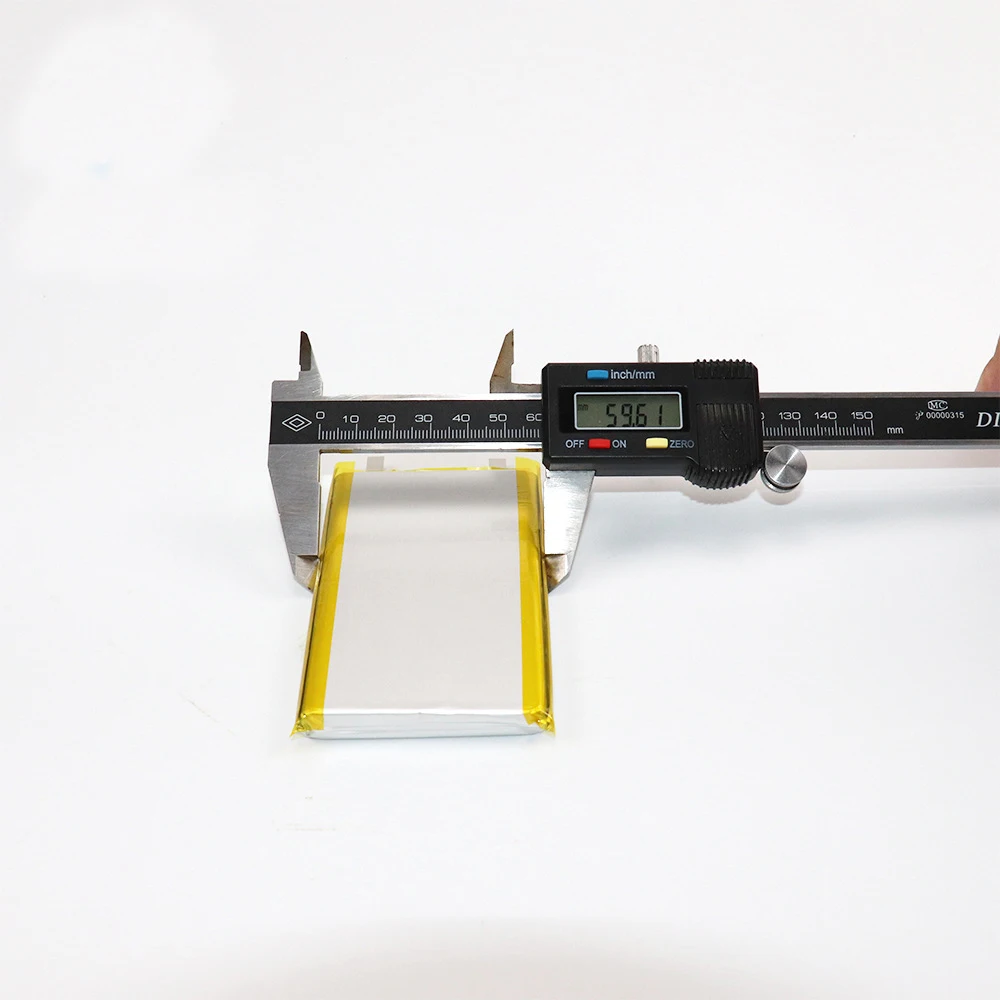

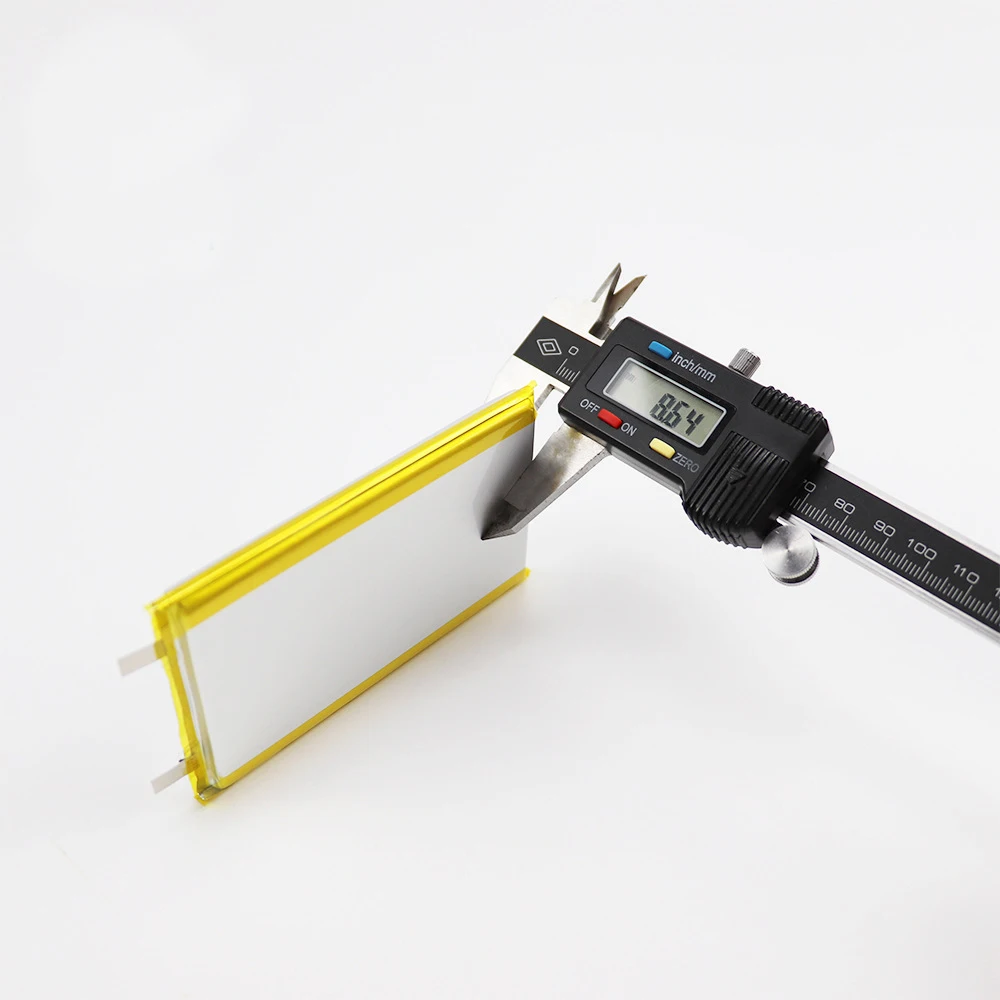

Size | 9mm*60mm*100mm |
Application | ⋅Smart mobile phone,electronic products ⋅Miner’s lamp,digital products. Portable electric ,Music box ⋅Hair dryer,robot vacumm cleaner,wireless video doorbells ⋅Modality equipment: Digital camera, DV, mobile DVD |
Cycle Life | >500times |
Features | ⋅low self-discharge ⋅no memory effect ⋅customized and flexible size ⋅anti-overcharger,short-circuit production(with PCM) Operating Environment: charging:0°C~45°C;65±20RH discharging::-10°C~60°C;65±20RH |
Operating Environment | charging:0°C~45°C;65±20RH discharging::-10°C~60°C;65±20RH |
Storage Environment | -10°C~45°C;65±20RH, storage for a long time(>3 months)and the storage condition shall be:<35°C;65±20RH |
Charging Attention | ⋅charging current and charging voltage should be less than specified in the specification. ⋅the charger shall be designed to comply with specification. |
| Content | Parameters | Remark | |
1 | Nominal Voltage | 3.7V |
| |
2 | Nominal Capacity | 8000mAh | 0.2 C5A | |
3 | Impedance | 120mΩ(Max) | With PCM | |
4 |
Charge |
Nominal charge: 0.2C5A/4.2V CC/CV | 0.01 C5A CV: cut-off current 0.01C5A | |
Quick charge:0.5C5A/4.2V CC/CV | 0.01C5A CV: cut-off current 0.01C5A | |||
5 | Charge Time | Nominal Charge | 8h(Max) |
|
Quick Charge | 4h(Max) | |||
6 | Standard Charge Current | 1600mA | 0.2C5A | |
| Max Charge Current | 4000mA | 0.5C5A | |
7 | Standard Discharge Current | 1600mA | 0.2C5A | |
8 | Max Discharge Current | 4000mA | 0.5C5A | |
9 | Charge Cut-off Voltage | 4.2V |
| |
10 | Discharge Cut-off Voltage | 3.0V |
| |
11 | Overcharge Detection Voltage | 4.28±0.025V |
| |
12 | Overcharge Release Voltage | 4.08±0.025V |
| |
13 | Overcharge Detection Delay Time | 1.3S (Typical) |
| |
14 | Overdischarge Detection Voltage | 3.0±0.1V |
| |
15 | Overdischarge Release Voltage | 3.0±0.1V |
| |
16 | Overcurrent Detection | 3-5A |
| |
17 | External Short Detection | Disconnect the Short-circuit Load |
| |
18 | Operation | 6uA (Max) | ||
